Samsung Brings Advanced Ultra-Fine Pixel Technologies To New Mobile Image Sensors

Samsung Electronics Co., Ltd., a world leader in advanced semiconductor technology has introduced the ISOCELL HP1, the industry’s first 200-megapixel (MP) image sensor with 0.64μm pixels, and ISOCELL GN5, the first image sensor to adopt all-directional focusing Dual Pixel Pro technology with two photodiodes in a single 1.0μm pixel.

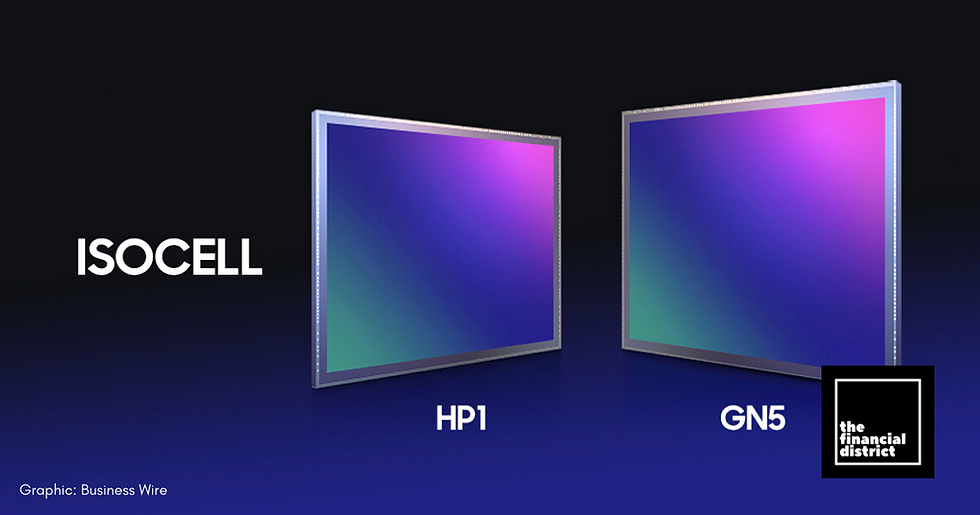

Photo Insert: Samsung's newest ISOCELL image sensors, the HP1 and GN5.

“Samsung has been pioneering ultrafine pixel technologies that are taking high-resolution image sensors to the next level,” said Duckhyun Chang, executive vice president of sensor business at Samsung Electronics, Business Wire reported.

“With the ISOCELL HP1 that is breaking barriers and ISOCELL GN5 bringing ultrafast autofocus, Samsung will continue to lead the trend for next-generation mobile imaging technologies.”

ISOCELL HP1: Capture the world in breathtaking 200MP and crystal sharp 8K video

The ISOCELL HP1 is the industry’s first mobile image sensor to support 200MP. Based on Samsung’s most advanced 0.64μm-sized pixels, the ISOCELL HP1 brings such ultrahigh resolution in a small package that fits comfortably in today’s handheld devices. With the ISOCELL HP1, pictures hold an astonishing amount of detail that helps the image stay sharp even when cropped or resized.

For ultimate low-light photography, the ISOCELL HP1 features an all-new ChameleonCell technology, a pixel-binning technology that uses a two-by-two, four-by-four, or full pixel layout depending on the environment. In a low-lit environment, the HP1 transforms into a 12.5MP image sensor with large 2.56μm pixels by merging 16 neighboring pixels.

The newly formed 2.56μm pixel is capable of more light absorption and sensitivity, producing brighter and clearer photos indoors or in the evening. In bright outdoor environments, the sensor’s 200-million pixels can capture ultra-high-definition photography on mobile devices.

The ISOCELL HP1 can take 8K videos at 30 frames-per-second (fps) with minimum loss in the field of view. The HP1 merges four neighboring pixels to bring the resolution down to 50MP or 8,192 x 6,144 to take 8K (7,680 x 4,320) videos without the need to crop or scale down the full image resolution.

ISOCELL GN5: Lock on instantly and take super-sharp hi-res images with all-directional autofocus

The ISOCELL GN5 is the industry’s first 1.0μm image sensor to integrate Dual Pixel Pro, an all-directional autofocusing technology, that can substantially boost autofocusing capabilities.

This technology places two photodiodes, the smallest in the industry, within each 1.0μm pixel of the sensor either horizontally or vertically to recognize pattern changes in all directions. With one million phase-detecting multi-directional photodiodes covering all areas of the sensor, the ISOCELL GN5’s autofocusing becomes instantaneous, enabling sharper images in either bright or low-lit environments.

The image sensor also makes use of Samsung’s proprietary pixel technology, which applies Front Deep Trench Isolation (FDTI) on a Dual Pixel product for the first time in the industry. Despite the microscopic photodiode size, FDTI enables each photodiode to absorb and hold more light information, improving the photodiodes’ full-well capacity (FWC) and decreasing crosstalk within the pixel.

Samples of Samsung ISOCELL HP1 and GN5 are currently available.
